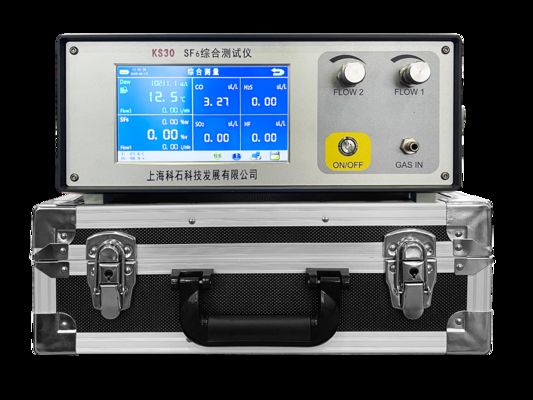

[KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors

  • [KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors
Lugar de origen Llevar a la fuerza
Nombre de la marca KSTONE
Certificación ISO9001
Número de modelo KS30-CS
Precio $12000-$25000
Detalles de empaquetado Caja de cartón / madera
Tiempo de entrega 10 días de trabajo
Condiciones de pago T/T
Capacidad de la fuente 100 juegos/año

Póngase en contacto conmigo para muestras y cupones gratis.

WhatsApp:0086 18588475571

¿Qué quieres decir?: 0086 18588475571

Skype: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Rango de medición de pureza 0 ∼ 100% Precisión de la medición ± 0.5 ℃
Resolución 0.01% Rango de rocío -80 ℃ - +20 ℃
Gama de la humedad 0.05—23100 μl/L Tiempo de respuesta de medición (+20 ℃) -60 ℃ → 20 ℃ 5s [30s]; 20 ℃ → -60 ℃ 10s [300s]
Repetibilidad ± 0.2 ℃
Resaltar

Adiabatic Design SF6 Gas Tester

,

Constant-Temperature SF6 Gas Tester

,

Chemical Sectors SF6 Gas Tester
Deja un mensaje
Descripción de producto
[KS30-CS] SF6 Gas Tester: Constant-Temperature Adiabatic Design, Dew Point Testing & High Accuracy for Power/Chemical Sectors

The KS30-CS SF6 gas analyzer adopts a constant-temperature and adiabatic design, which can reduce the impact of sample gas temperature and ambient humidity, and improve measurement accuracy. It is mainly used to measure the SF6 gas purity (volume/mass percentage) of mixed gases including SF6 & air and SF6 & N2. By the same token, products of this series can also be used for purity measurement of other types of gases, such as H2 & N2 mixtures. This equipment is also equipped with a dew point testing function (for the purity measurement of other gas types, the type of mixed gas must be specified before purchase).

The SF6 gas analyzer can be widely used in fields such as electric power, chemical industry, metallurgy, iron and steel, and gas industry, for analyzing gas purity and conducting dew point tests.

Functional Features

  1. Long-life detection module
  2. High accuracy and good repeatability
  3. Built-in pressure maintaining valve and electronic flowmeter
  4. Measurement results not affected by ambient temperature
  5. Fast measurement response speed
  6. Color touch screen control and graphical interface for easier operation



Parameter Category Specific Parameters
Purity Measurement range: 0～100%

Measurement accuracy: ±0.5% (±0.2% within a certain range)

Resolution: 0.01%
Dew Point Dew point range: -80℃ — +20℃

Measurement accuracy: ±0.5℃

Moisture range: 0.05—23100 μL/L

Measurement response time (+20℃): -60℃→20℃ 5S[30s]; 20℃→-60℃ 10S[300S]

Repeatability: ±0.2℃

Resolution: Dew point: 0.1℃; Moisture: 0.1ppm (100ppm～1000ppm), 0.01ppm(10ppm～100ppm)
Sample Gas Flow 0.2±30%L/min
Sample Gas Pressure ≤10bar
Response Time ≤30s
Environmental Conditions Temperature: -20℃～+50℃; Humidity: 5～95%RH
Working Power Supply Lithium battery power supply, 100～240AC, 50/60HZ, AC/DC dual-use
Dimensions 414333177mm
Weight 3Kg
